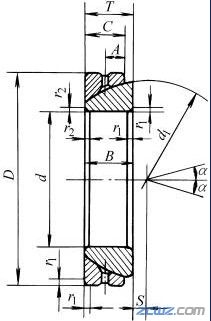

GAC…S型角接触关节轴承的结构型式和外形尺寸

GAC…S型角接触关节轴承的结构型式和外形尺寸

GAC…S型角接触关节轴承的结构型式和外形尺寸




E  (正 常)     系 列
轴承型号
尺    寸 /mm
α/(°)
d
D
B
C
T
d1
S
A
r1smin
r2smin
GAC25S
25
47
15
14
15
42
0.6
7.5
1.0
0.3
3.5
GAC30S
30
55
17
15
17
49.5
1.3
8.5
1.0
0.3
3
GAC35S
35
62
18
16
18
55.5
2.1
9
1.0
0.3
3
GAC40S
40
68
19
17
19
62
2.8
9.5
1.0
0.3
3
GAC45S
45
75
20
18
20
68.5
3.5
10
1.0
0.3
3
GAC50S
50
80
20
19
20
74
4.3
10
1.0
0.3
3
GAC55S
55
90
23
20
23
82
5.0
11.5
1.1
0.6
3
GAC60S
60
95
23
21
23
88.5
5.7
11.5
1.1
0.6
3
GAC65S
65
100
23
22
23
93.5
6.5
11.5
1.1
0.6
2.5
GAC70S
70
110
25
23
25
102
7.2
12.5
1.1
0.6
2.5
GAC75S
75
115
25
24
25
107
7.9
12.5
1.1
0.6
2.5
GAC80S
80
125
29
25.5
29
115
8.6
14.5
1.1
0.6
2.5
GAC85S
85
130
29
26.5
29
122
9.4
14.5
1.1
0.6
2.5
GAC90S
90
140
32
28
32
128.5
10.1
16
1.5
0.6
2.5
GAC95S
95
145
32
29.5
32
135
10.8
16
1.5
0.6
2.5
GAC100S
100
150
32
31
32
141
11.6
16
1.5
0.6
2
GAC105S
105
160
35
32.5
35
148
12.3
17.5
2.0
0.6
2
GAC110S
110
170
38
34
38
155
13
19
2.0
0.6
2
GAC120S
120
180
38
37
38
168
14.5
19
2.0
0.6
2
